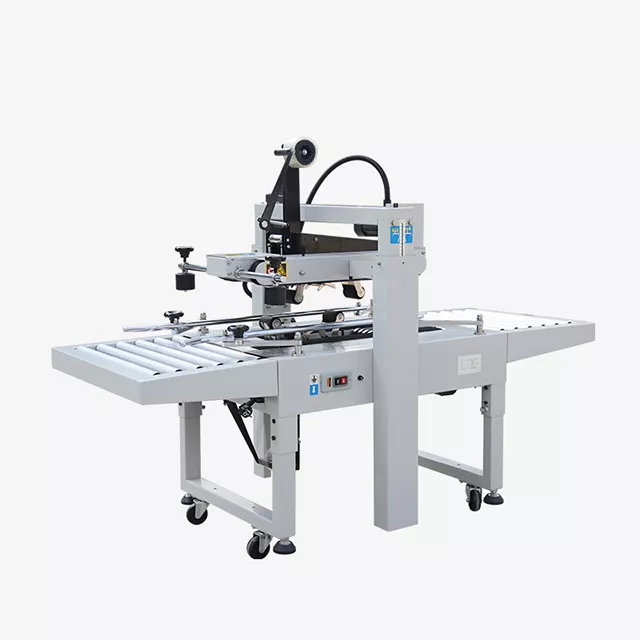

Semi Automatic Adhesive Tape Carton Sealer for Up Down FXJ-6050 Hualian

Semi-automatic Carton sealer

Description:

FXJ series is designed to seal carton by applying adhesive tape
Cost effective, High speed
Easy size changeovers
For integration into production line or as stand alone machine
It’s widely used in the fields of domestic electrical appliance, foodstuffs, general merchandise, medicine and chemical industry
Conveyor belt tension and tape tension are adjustable to meet the needs of soft/hard cartons
Printed tape can be used to improve enterprise image
Model FXJ-6050: top and bottom drive belts, used in circumstance where cartons size is not changed frequently, especially ideal for sealing uniform and high cartons

Description

MODEL	FXJ-6050
Voltage (V/Hz)	AC 220/50 110/60
Power (W)	200
Max. Carton Size (W×H)(mm)	∞×500×600
Min. Carton Size (W×H)(mm)	150×180×130
Speed (m/min)	20 m/min (25-45 cartons/min)
Adhesive Tape Materials	BOPP, PVCadhesive tape, water-free adhesive tape
Height of Table (mm)	630-780
Width of Adhesive Tape (mm)	48, 60, 76 (optional)
External Dimensions (L×W× H)(mm)	905(with bracket 1755 )×800×(960-1650)
Net Weight (kg)	150
Max. Conveyor Load(kg)	30
